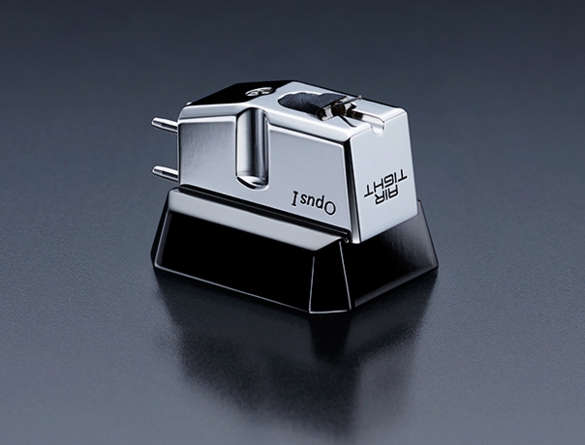

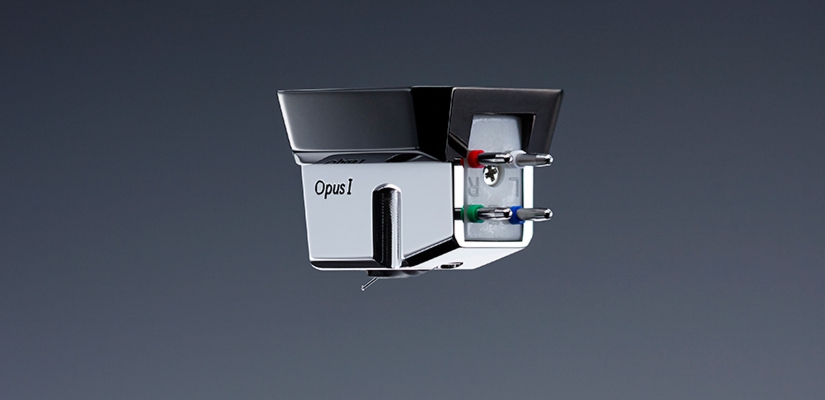

Opus-1
MC phono cartridge
Features
- Top-of-the-line MC Phono Cartridge
- Second-to-none, 3-dimesional image made available in soundstage
- Unprecedented, sublime sonic balance achieved thru years-long research seeking for optimum combination ratio in internal impedance and output voltage
- Exclusive, renowned SH-uX core sealed in ultra-hard duralumin housing fortified by nickel plating
Specs
|
Type:
|
Ultra Low Impedance
MC phono cartridge
|
|---|---|
|
Frequency range:
|
10-50,000Hz
|
|
Internal impedance:
|
1.4 ohms (DCR)
|
|
Output voltage:
|
0.45mV/1kHz
|
|
Magnet:
|
Neodymium#50
|
|
Tracking force:
|
2.0-2.2g
|
|
Dynamic Compliance:
|
8x10⁻⁶Cm/Dyne
|
|
Cantilever:
|
Boron Cantilever
|
|
Stylus Tip Type:
|
Semi-line contact
(3μmm×30μmm)
|
|
Channel balance:
|
Less than 0.5dB/1kHz
|
|
Cross talk:
|
More than 30dB/1kHz
|
|
Cartridge base:
|
A7075(DLC plating)
|
|
Housing:
|
A5056(Rhodium plating)
|
|
Terminal:
|
Rhodium plating
|
|
Weight:
|
12.5g
|
