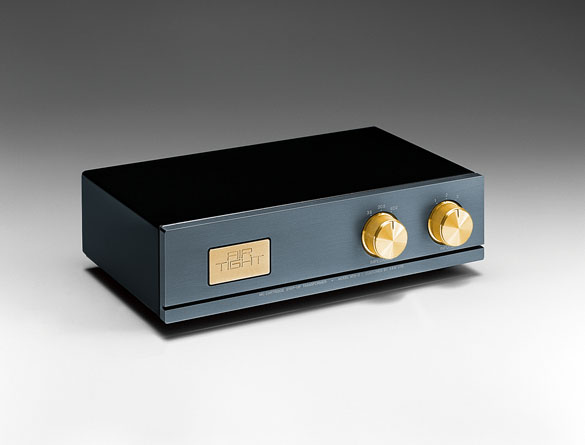

ATH-2 REFERENCE

step-up transformer for MC cartridge

Features


  • ALMIGHTY MC STEP-UP TRANSFORMER EVER MADE AVAILABLE IN THE MARKETPLACE
  • We, A&M Ltd., proudly introduce the ATH-2 REFERENCE as one of the finest As an ultimate top version of the ATH-2A, the ATH-2 REFERENCE has three selectable inputs, i.e., "Bypass", "2Ohm" and "40Ohhm".
  • Thanks to the employment of the new winding material (oxygen-free copper) and careful review on its winding method, the dynamics-range, sonic powerfulness and quality feelings have been remarkably improved, thus achieving an unparalleled affluence in terms of musicality of analogue discs.
  • The frequency rage being fully procured, the upper-end is extend up to 80kHz (-1dB) and 120kHz (-2.2dB).
  • The S/N ratio especially at the low output level totally surpassing the competitors' performance, you may enjoy the higher quality in the different dimension in combination with the Hi-End amplifiers.
  • To say nothing of the 2 Ohm position that complies with the latest ultra-low impedance below 1 Ohm, the ATH-2 REFERENCE derives the full potentials of the existing MC cartridges, starting from the Ortofon SPU down to the latest ones

Specs

Input Selector
3 position
・Bypass: without gain, for MM cartridges
・2Ω (0.6Ω~7Ωapplicable) gain 29dB
・40Ω (7Ω~40Ω applicable) gain 23dB

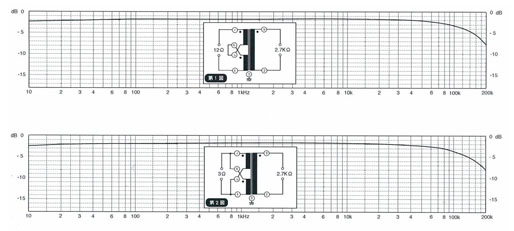

Frequency response
10Hz~80kHz (-1dB)
Dimensions
240(W)×180(D)×70(H)mm
Weight:
2.8kgs
