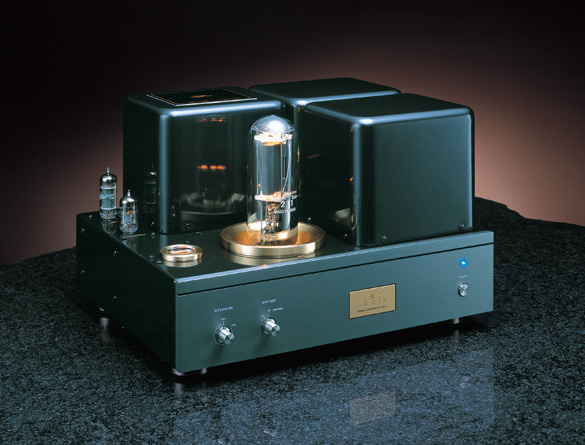

ATM-211
monaural power amplifier
Features
- EBULLITION OF AFFLUENT POWER SENSATION
- Unprecedented high power 22W derived from broadcast-oriented 211 valve with direct-coupled cathode-follower stage
- All-stage triode-driven non-NF Class-A operation to achieve pure,unimpaired sound
- Independently coiled transformer for amp-stage, bias, heater & relay circuits to remove mutual interferences
- DC-driven heater filament to eliminate hum of output valve
- Relay-activated muting circuit for long life of electrolytic capacitor
- Bias meter to check operation status of output valve
Specs
|
Valves employed:
|
211 × 1, 12AX7 × 1, 12BH7A × 1
|
|---|---|
|
Rated output:
|
22W (8 ohms)
|
|
Frequency response:
|
20 — 20kHz (1dB, 22W)
|
|
Input impedance:
|
100kohms
|
|
Dimensions:
|
390(W) × 360(D) × 260(H)mm
|
|
Weight:
|
26kgs
|
