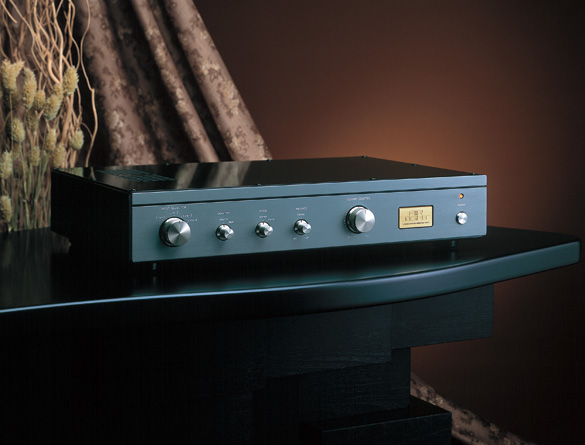

ATC-3
stereo line-control amplifier
Features
- IMPECCABLE AFFORDABLE MATCH FOR SOPHISTICATED POWER AMPS
- SRPP line amp with reinforced buffer stage to assure good noise rejection, low output impedance and extended linearity
- Rich power supply featuring quick recovery diode for high operational speed and low pulse noise
- Single-steel sheet with multi-layer enamel for high rigidity and low noise
- High-quality input/output jacks with detachable mains cord
- Optional ‘Alps’ high-precision pot RK-501
Specs
|
Valves employed:
|
12AX7(ECC83) × 1, 12AU7(ECC82) × 2
|
|---|---|
|
Output voltage:
|
rated 2V, max. 15V
|
|
Output impedance:
|
(Recommended Load : Total>47
kΩ)
|
|
THD:
|
less than 0.01%
|
|
Input sensitivity:
|
110mV (ouput 1V)
|
|
S/N ratio:
|
less than 90dB (IHF-A weighted)
|
|
Dimensions:
|
430(W) × 325(D) × 90(H)mm
|
|
Weight:
|
8kgs
|
ATC-3 pdf catalogue Download
