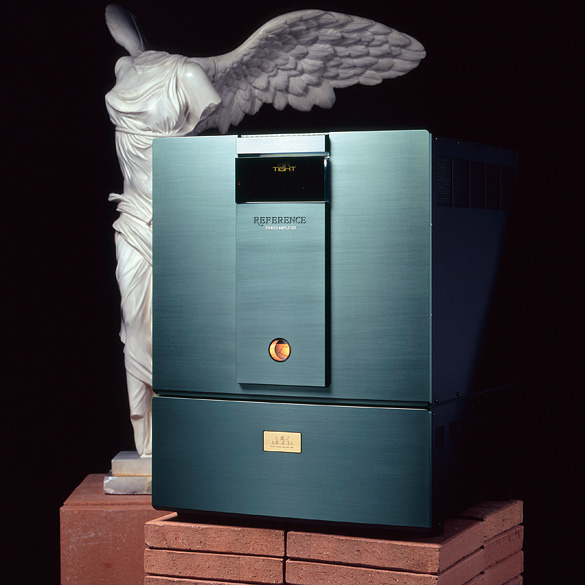

ATM-2001/ATM-2001S
superdreadnought mono power amplifier / stereo power amplifier
Features
- THE MAJESTIC
- Comfortable high power thanks to colossal output stage featuring 12 pcs. of 6550 beam valve
- Individually direct-coupled cathode-follower to ensure an optimum operation of each output valve
- Massive power supply employing huge EI power transformer
- 2 independent amps thus composed in UL configuration afford rich high power without load on each component
- Lavish employment of strictly select components of high performance & long durability
Specs
|
Valves employed:
|
6550 × 12, 12BH7× 6, 12AX7× 2, 12AU7 × 2
|
|---|---|
|
Rated output:
|
338W(8 ohms, mono) / 180W(8 ohms,stereo)
|
|
THD:
|
less than 1% at rated output
|
|
Frequency response:
|
20 - 20,000Hz( 1dB)
|
|
Input impedance:
|
100k ohms
|
|
S/N ratio:
|
100dB
|
|
Dimensions:
|
power supply; 430(W) ×185(H) ×500(D)mm
amplifirer; 430(W) ×380(H) ×520(D)mm
|
|
Weight:
|
65kgs(power supply),50kgs(amplifier)
|
ATM-2001 pdf catalogue Download
