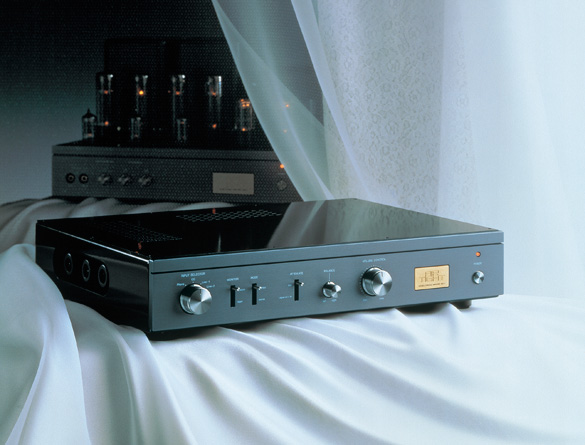

ATC-1
stereo line & phono control amplifier
Features
- SATISFACTION OF CRAVING FOR PAST WITH MODERN TECHNOLOGY
- Highly reliable 12AX7 valves meticulously selected after ageing
- 3-stage low-impedance K-K NF configuration equaliser acclaimed for low distortion & wide frequency response
- Simple, single-stage flat amp for pure sound
- High-voltage B-power supply with quick recovery diode
- PCB-free hand wiring
- Discrete, highly rigid dia-magnetic chassis
- EL-core power transformer
Specs
|
Valves employed:
|
12AX7(ECC83) × 5
|
|---|---|
|
Output voltage:
|
rated 2V, max. 15V
|
|
Output impedance:
|
600 ohms (pre-out, EQ-out)
|
|
THD:
|
0.05% (phono), 0.02% (line)
|
|
Input sensitivity:
|
phono; 1.8mV(output 1V), line; 150mV (output 1V)
|
|
S/N ratio:
|
less than 85dB (phono) & 98dB(line)
|
|
Dimensions:
|
430(W) × 325(D) × 90(H)mm
|
|
Weight:
|
7kgs
|
