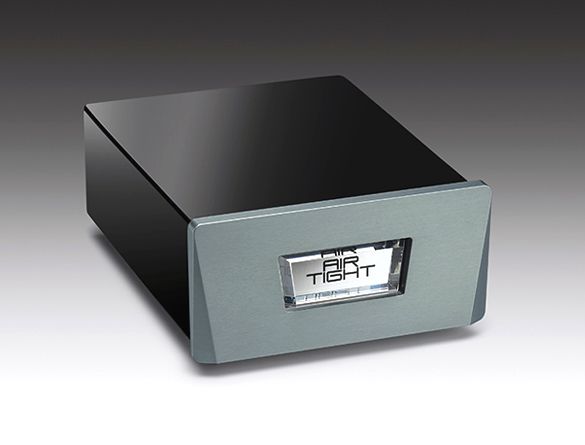

ATH-3s

step-up transformer for MC cartridge

ATH-3s

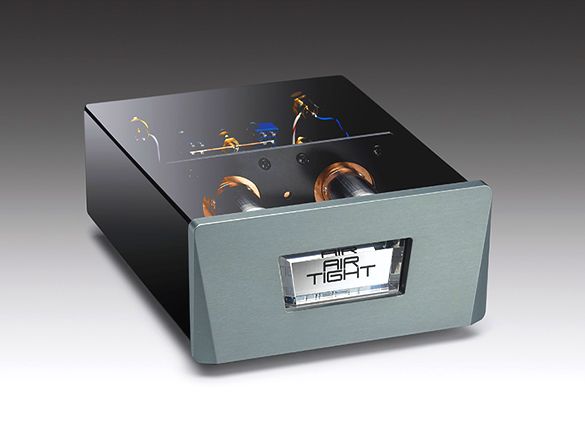

inside

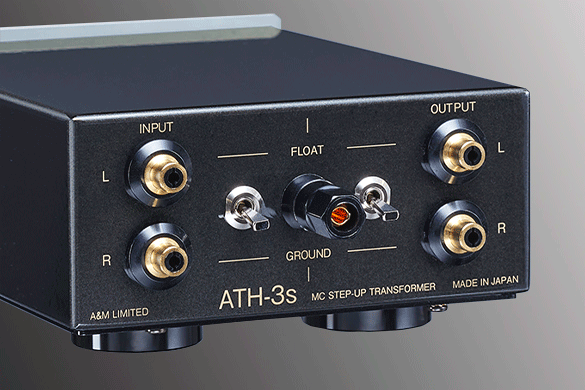

Ground Lift Switch

Specs

■ ATH-3s Specifications

Step-up ratio

    • 1:40 (32dB gain) at low impedance mode

Adaptable impedance of cartridges

  • 1Ω〜7Ω (Recommended)
  • High Impedance model for 7Ω〜40Ω available (factory set)

Dimensions

  • 144 (W) × 207 (D) × 80 (H) mm

Weight

  • 1.5kgs

ATH-3s MC Step-Up Transformer Debut!

Airtight is renewing MC Step-Up Transformer ATH-3 to a new model “ATH-3s”.

The new ATH-3s is equipped with Ground Lift Switches, which enable to select grounded and floated grounding individually for input and output.
This feature makes it possible to handle from floating balanced transmission to normal transmission.
Along with that, the housing and insulator are also changed to aluminum to improve the sound quality. We chose a ground lift switch that was particular about the feeling. It has been well received by ATE-3011,
We also incorporates a Hexagon Nut Binding Post MIL-P-55149 / 8 (MIL Standard), the same GND terminal we use for our flagship Phonostage ATE-3011.

The new ATH-3s will be available from March, 2021.
