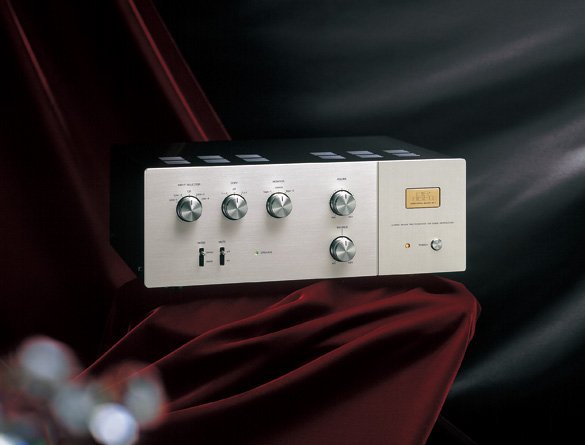

ATC-2
stereo line-control amplifier
We regret to announce you of discontinuation of ATC-2 Pre-Amplifier due to availability of parts and components. We thank you for your patronage and interest in ATC-2 for over 30 years.
Features
- REALISATION OF PEERLESS FIDELITY WITH FULL EMOTIONAL IMPACT
- Self-biased 2-stage NF flat amp to provide impressive high gain, thus insuring powerfulness and high resolution
- SRPP output stage for high power under low impedance
- 6 independent constant voltage circuits for stable, low-bass reproduction
- Custom-selected coupling capacitor to ensure natural sound free from intermodulation distortion
- Abundant input and outputs for versatile use
- Single-steel chassis coated with several enamel layers for superb rigidity expelling mechanical noise and induced currents
- “Alps” acclaimed high-precision pot RK-501 available at option
Specs
|
Valves employed:
|
12AX7(ECC83) × 1, 12AU7(ECC82) × 2, 6X4 × 1
|
|---|---|
|
Output voltage:
|
rated 2V, max. 15V
|
|
Output impedance:
|
200 ohms
|
|
THD:
|
less than 0.01%
|
|
Frequency response:
|
5 — 100,000Hz (1dB)
|
|
Input sensitivity:
|
110mV (output 1V)
|
|
S/N ratio:
|
less than 90dB (IHF-A weighted)
|
|
Dimensions:
|
410(W) × 337(D) × 156(H)mm
|
|
Weight:
|
12kgs
|
