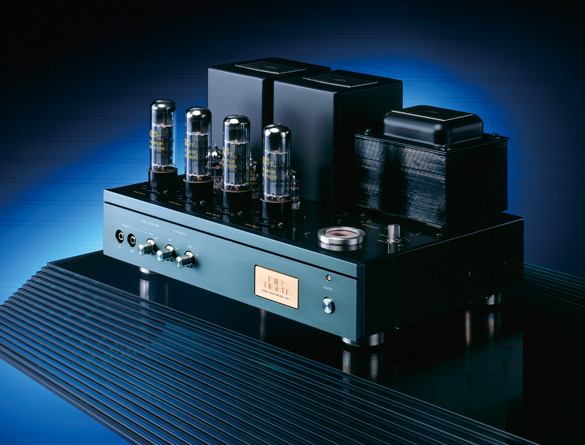

ATM-1S
stereo power amplifier
Features
- ULTIMATE DESIGN FOR SONIC IMMACULACY
- Dependable orthodox configuration composed of highly acclaimed 6CA7 valves under Mullard phase inversion
- Hefty output headroom achieved by newly developed Hashimoto transformers boasting of 60W power handling capability
- Bias adjustment facilities for easy service accessibility
- No PCB in favour of point-to-point manual soldering with full OFC wires and copper-plated chassis
Specs
|
Valves employed:
|
6CA7 × 4, 12AU7 × 2, 12AX7 × 1
|
|---|---|
|
Rated output:
|
36W + 36W (8 ohms)
|
|
Input sensitivity:
|
1V
|
|
Input impedance:
|
100kohms
|
|
Load Impedance:
|
４Ω/８Ω/16Ω Interchangeable by inner wiring.
Set at 8Ωload when shipped from the factory.
|
|
Features:
|
input selector (2-ch), bias adjuster
|
|
Dimensions:
|
368(W) × 293(D) × 231(H)mm
|
|
Weight:
|
22kgs
|
