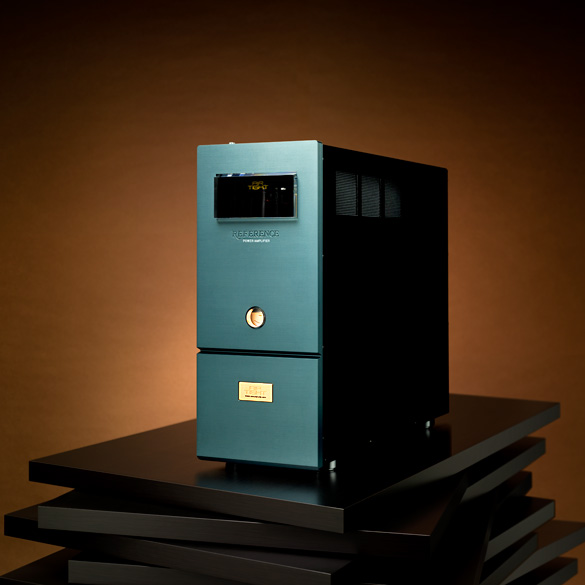

ATM-3011R
reference mono power amplifier
Features
- ASTOUNDING RESERVE IN POWER QUALITY!
- The memorial valve high-power mono amp to mark the glorious 25th anniversary of the Air Tight ,that enables to derive in the form of ultimate fidelity the high-speed feelings , definition capability and opulent information inherent in the latest speakers.
- Parallel Connection of KT120 Valves under UL connection operated are 12pcs. of the reputed high-power valve compatible to the KT88.
- Driving Circuitry Featuring Direct-Coupled Cathode Follower
- Output valves can be easily adjusted by the front bias meter and the alignment pot affixed to each valve
- Banishment of PCB
- The amp section, all the components are placed on the copper-plated steel plate in order to improve heat conduction, to prevent vibration and shield magnetism
- Strictly Select Components
- Dispositions of components are so designed as to effect heat dissipation by natural air circulation, thus ensuring noise suppression to achieve good S/N ratio
- Chassis of compact, upright structure
Specs
|
Valves employed
|
KT120x12, 12BH7× 3, 12AX7× 1, 12AU7 × 1
|
|---|---|
|
Rated output:
|
200W (mono)
|
|
THD:
|
less than 1% at rated output
|
|
Frequency response:
|
20 - 20,000Hz( 1dB)
|
|
Load impedance
|
8 ohms
|
|
Input impedance:
|
100k ohms
|
|
S/N ratio:
|
100dB
|
|
Power consumption
|
300W
|
|
Dimensions:
|
210(W) 520(H) ×565(D)mm
|
|
Weight:
|
46kgs
|
ATM-3011R pdf catalogue Download
