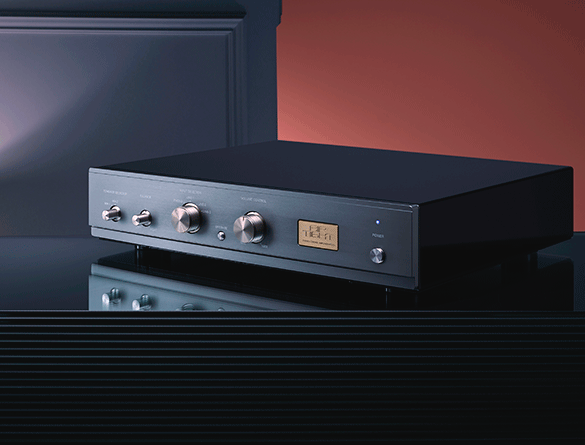

ATC-5s New
Pre amplifier
Specs
|
Valves employed:
|
12AX7 × 3, 12AT7 × 2
|
|---|---|
|
Phono equalizer input:
|
RCA/MM × 2
|
|
Input impedance:
|
47kΩ（Gain 40dB）
|
|
Phono equalizer output:
|
RCA × 1
|
|
Output impedance:
|
|
|
Recommended load more than 47kΩ
|
|
|
Line input:
|
RCA × 3
|
|
Input impedance:
|
47kΩ (Gain 18dB)
|
|
Line output:
|
RCA × 2
|
|
Output impedance:
|
Recommended load more than 47kΩ
|
|
Output voltage:
|
20V(Load 100kΩ/1% distortion)
|
|
Line amplifier distortion:
|
THD 0.02%(1V/1kHz)
|
|
Frequency response Phono equalizer:
|
50Hz~20kHz(±0.2dB) /20Hz-2.5dB
|
|
Frequency response Line amplifier:
|
20Hz~100kHz-1dB
|
|
Power consumption:
|
50VA
|
|
Dimensions:
|
400(W) × 260(D) × 90(H)(tentative)
|
|
Weight:
|
9kgs(tentative)
|
