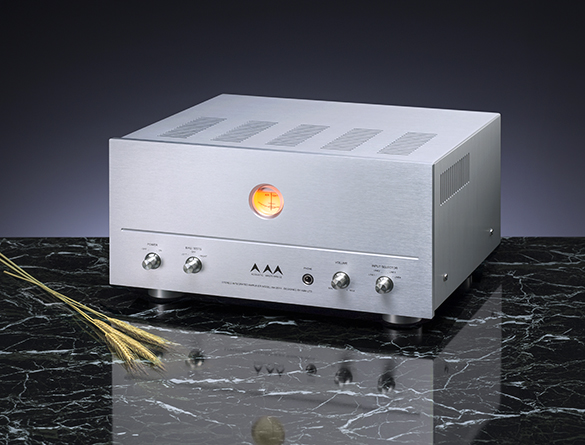

AM-201H
integrated amplifier
Features
- Pure, transparent sound with the renowned AIR-TIGHT musicality derived from our time-tested valve technology.
- Useful auto-bias system for safe and reliable operation under parallel push-pull configuration.
- 100% hand-elaborated, point-to-point, PCB-free wiring for stable, long-life performance.
- Luxurious cosmetics featuring thick aluminium extruded front & rear panels, bias balance meter.
- Headphones Output
Specs
|
Output power
|
22W+22W, 4Ω/8Ω (rms)
|
|---|---|
|
Valves employed
|
EL84(6BQ5/6P14)x8, 12AX7x1, 12AU7x2
|
|
Input impedance
|
100kΩ
|
|
Output impedance
|
4Ω, 8Ω
|
|
THD
|
1%(1kHz)
|
|
Frequency response
|
20~25kHz
|
|
Input sensitivity
|
230mV
|
|
S/N ratio
|
90dB
|
|
Dimensions
|
358(W) x 295(D) x 173(H)mm
|
|
Weight
|
15kg
|
